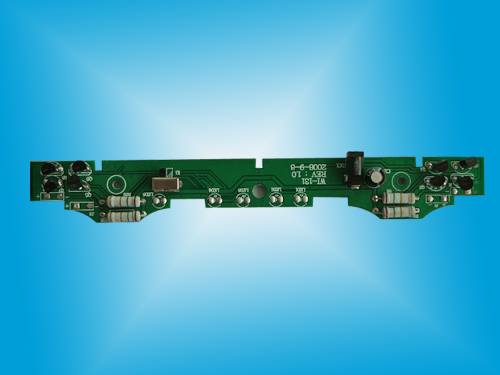

| 4 channels charger |
Parameter of NIMH charger(As an example to 2channels 2S charger)
a. input: USB or 5V,12V adaptor
b. fast charging current: 250mA when 1channel / 350mA when 2channes
c. trickle charging current: 20mA when voltage of battery is less than 2.0V
d. full charge detection method 1(－△Ｖ): 10mV(0mV—10mV)
e. full charge detection method 2(Max temp): 55℃(50℃—60℃)
f: full charge detection method 3(Max voltage): 3.00V(2.9V—3.1V) @30min
g. full charge detection method 4(Timer): 6h(5.5h—6.5h)
h. Full charge rate: More than 80% of capacity
i. indicator: Dual color led or single color Led |
|
